ISOCOP MULTIFUNCTION

Description
Specs
Documents
Certifications

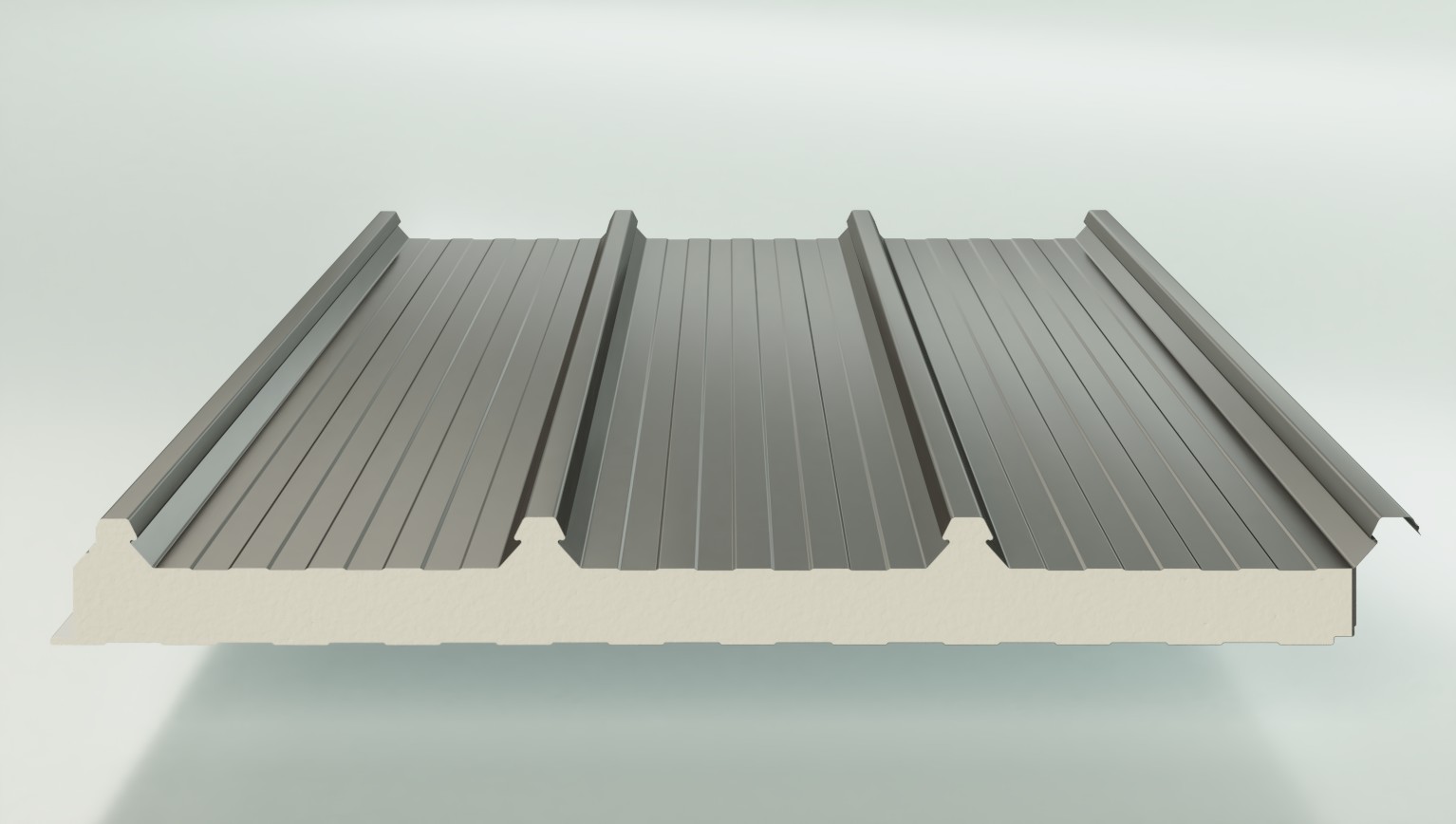

Isocop 4-rib multifunction sandwich panel for polyurethane roofing, with ribbed profile and accessory integration system.

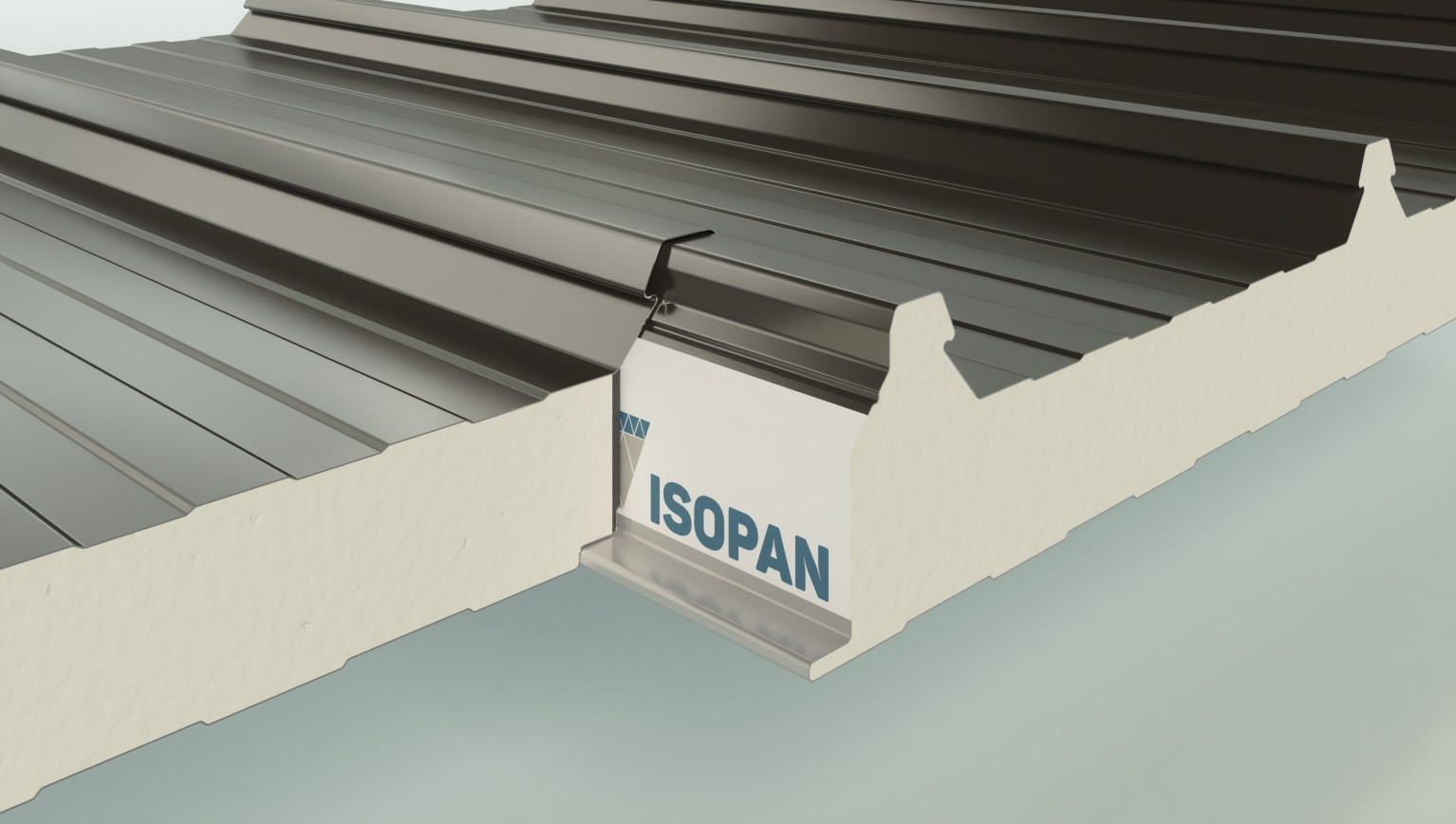

In addition to the polyurethane insulation, the Isocop 4-rib Multifunction panel has a special profiling of the external metal sheet that allows for the installation of special brackets on the roof in a quick and easy manner. In this way, you can install solar panels on your roof.

Territorial availability

Market: ITALY, FRANCE, GERMANY, CZECH REPUBLIC, ROMANIA AND SPAIN

FEATURES

Sandwich panel with double metal lining
Polyurethane insulation
4-rib ribbed profile
Patented system to fix proper brackets on the external sheet

TECHNICAL FILES

DOCUMENTATION

Manual
Catalogue
product sheet

TECHNICAL SUPPORT

PRODUCT CERTIFICATION

CERTIFICATIONS' DETAILS

Casella Vuota: Prodotto non producibile
Without certificate
Certified producible
Certificate by extension
Performance released with Technical Note

Fire reaction

Fire reaction

FIRE REACTION CERTIFICATION: refers to the reaction of materials to the fire in the actual conditions of final application, with special focus on the degree of participation in the fire. Reaction to fire is a passive fire protection measure that carries out its main effects during the first propagation of the fire with the aim of limiting ignition of materials and propagation of the said fire (standard EN 13501-1)

Isopan panels limit ignition and propagation of flames in the event of a fire.

ATTENTION: The performances declared in the tables below, which are associated with different types of insulation, can vary based on the production of the building, in accordance with local and national regulations in force. Kindly check with Isopan. If not specifically requested, no performance will be provided.

&nbps;

Classification	Isolation	Category	Thickness 30	40	50	60	80	100	120	150
B s2 d0	Foam	Fire reaction
C s3 d0	Foam	Fire reaction

Broof

Broof

B-ROOF CERTIFICATION: represents the specific assessment of external fire exposure to roofs and the fire reaction class of the installed photovoltaic module. The test methods and performance against fire are detailed in UNI CEN/TS 1187. The circular of the Fire Department accepts use of cover packages classified according to regulations such as B-roof (t2), B-roof (t3) and B-roof (t4). Identification of the test method used is indicated by (t1), (t2), (t3), and (t4), where the progressive number does not indicate more or less resistance to fire, but refers to the different test method. Performance is indicated by the letters: B-roof indicates maximum possible classification, whereas F-roof indicates no performance.

Isopan panels reduce the risk of fire spreading on roof coverings, thus making them suitable for installation of photovoltaic panels.

ATTENTION: The performances declared in the tables below, which are associated with different types of insulation, can vary based on the production of the building, in accordance with local and national regulations in force. Kindly check with Isopan. If not specifically requested, no performance will be provided.

&nbps;

BROOF	Isolation	Category	Thickness 30	40	50	60	80	100	120	150
Broof(T3)	Foam	Broof

SEE ALL
